Arcs Table

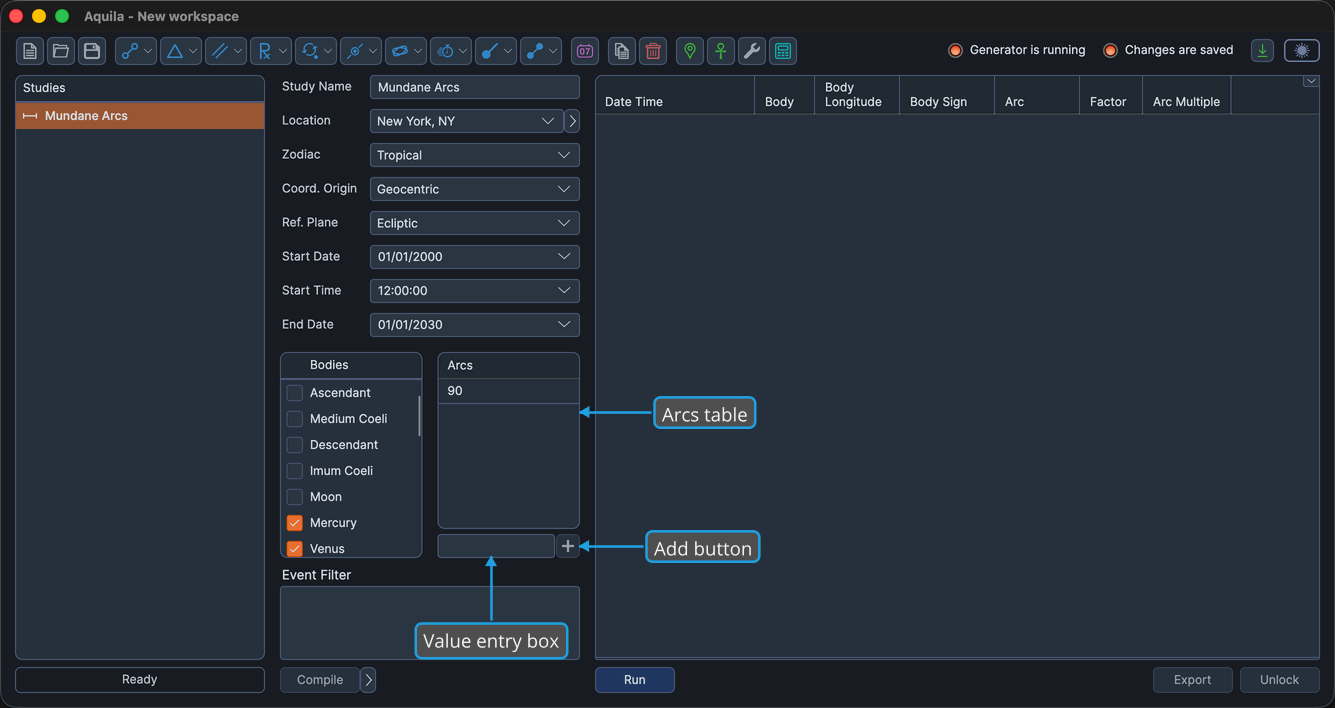

The Arcs table is an editable numeric table of arc values, in degrees, used by the Mundane Arcs study. When you generate events, the study records an event each time a body has traveled a whole-number multiple of one of the listed arcs.
Table Columns
| Column | Description |
|---|---|
| Arcs | An arc size in degrees that you enter. Each row defines one arc the study measures against. |
Managing Arc Values
The Arcs table shares the numeric-table controls used throughout Aquila. Type a value into the entry box below the table to add it, and use the table's context menu to remove values. The full gestures are documented on the Aspects Table page:
- Add a Numeric Table Value
- Edit a Numeric Table Value
- Delete Selected Numeric Table Values
- Delete All Numeric Table Values
Saving Value Sets as Presets
You can save a set of arc values as a named preset and reload it into any numeric table later. See Numeric Table Presets for the full workflow.
